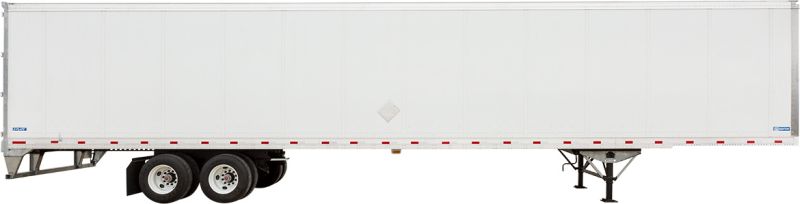

Stoughton ZGPVW-535T-S-C-AR
| Manufacturer: STOUGHTON |
Request A Quote
Make & Model
STOUGHTON
Detailed Specification
Z-PLATE® COMPOSITE TRAILERS
Overall - 53’-0"
Overall - 102"
Inside - 101"
Overall - 13’-6" based on 47" 5th wheel height
Inside front - 110"
Inside rear - 110"
Door opening - 109-7/8"
Dock height - 49-1/2"
20,000 lb brake rating per axle, 27.5 ton payload
Trailing arm style air suspension with an external dock lock to minimize dock walk
6" tapered spindles and bearings with Pro-Torq axle nuts
Extended service brakes, quick change, 16-1/2" x 7", non-asbestos, meets requirements of Federal Motor Vehicle Safety Standard No. 121 and filtered air couplers.
5 hand hole and steel powder coated white, 10 stud hubs piloted with cast iron drums, 11-1/4" bolt circle
6-year guaranteed performance system with greas
as requested
2 Speed vertical square legs with 10" cushion foot, crank on roadside.
Wide inside-type mounting, longitudinal mounting channels spanning five cross members with cross, fore and aft diagonal bracing and cross channel braced
4-pin slider type with hot rolled 80,000 min. yield wide slide rails for 62" AFT location to 150" FWD location.
S.A.E. king pin, cross-head type, AAR rated built into structure, 3-1/2" shallow hi-tensile sandwich unitized with full width upper and lower plated and internal reinforcements
80,000 lb min. yield. Shallow area ahead of landing gear uses (3) hat-shaped heavy duty members. Landing gear, center bay area and area over slide rails use 4" I-Beam, 12" on center.
Description
Stoughton’s revolutionary Z-Plate® vans are built from composite laminate panels. These unique, patented poly-laminate panels are manufactured using epoxy-coated inner and outer galvanized steel skin for superior durability even in the most demanding applications. If repairs are required, Stoughton’s Z-Plate® panel design allows for easy panel replacement without requiring the removal of adjoining panels common with other plate trailer designs. This means less time in the shop and more time on the road.Stoughton’s Z-Plate® dry vans feature solid, full-width oak floors, extra wide extruded aluminum scuff rails, and the unique recessed splice plate with “A” slots for better cargo control using any standard cargo restraint system.
