Stoughton AHV-401T-AR-A

+1 (317)-788-1533
Last Updated: 03/16/2022 01:14 PM
+1 (317)-788-1533

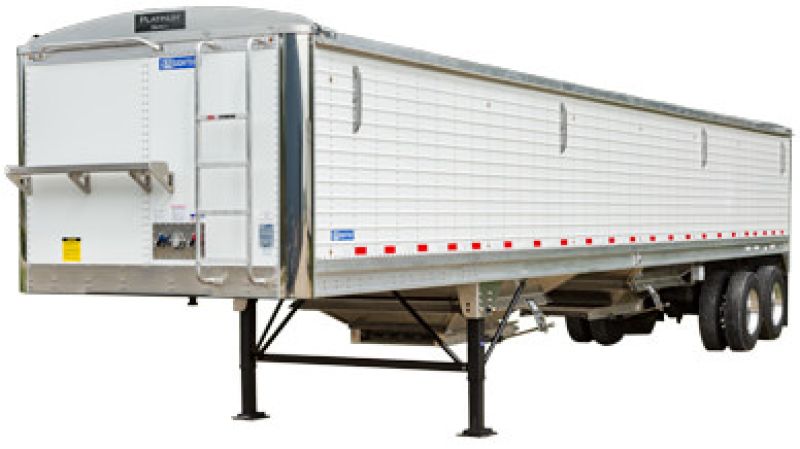

Stoughton AHV-401T-AR-A Grain-Trailer-Angled-Cover-Shot
Manufacturer: STOUGHTON

Request A Quote

Request A Quote

Make & Model

STOUGHTON

Detailed Specification

GRAIN TRAILERS/HOPPER TRAILERS
Overall - 40’-0"
Overall - 96"
Overall of 68" Model- 10’-4" based from top of tarp bows with 48" 5th wheel height Overall of 74" Model- 10'-10" based from top of tarp bows with 48" 5th wheel height
20,000 lb brake rating per axle 1,100 bushel capacity
Holland CBX23 air ride mounted to an aluminum suspension subframe Manual dump value and pressure gauge in box
(2) 5.75" diameter axles with tapered spindles
Extended service brakes 16-1/2" x 7" air with Haldex automatic slack adjusters, 3030 brake chambers Meritor Wabco 2S/1M ABS
22.5 x 8.25 hub-piloted steel disc - prepainted white Polished outers/unpolished inners
Stemco Guardian, oil, and Stemco vented hub cap
(8) 11R22.5 PSI: 90 / 620 KPa GAWR: 20,000 GVWR: 70,000
Holland Atlas 55 with Black Armor Finish Hex socket style crank located roadside Location from front: 110"
Fixed location - aluminum subframe
5" deep coupler with full width 1/4" lower plates AAR rated king pin located 20" from front

Description

Stoughton Platinum Series Grain Trailers have been recently redesigned to include more value-adding features and greater durability to provide years and years of dependable service. Our grain hopper trailers are designed and built for rugged reliability. Stoughton Grain Trailers come in a variety of sizes ranging from 900 to 1550 bushel capacity. Additionally, 96″ or 102″ wide models are available in several lengths. Packed with features, Stoughton grain haulers help make even the biggest jobs easier.

STANDARD FEATURES INCLUDE:-Platinum Plus Easy Opening 2 Stage Hopper Doors
-Work Area Lights for Easier Unloading at Night
-34 Degree Hopper Slope for Faster Cleanouts
-2 Rows of 7 LED Running Lights for Safer Operation
-AAR Rated Kingpin
-Aluminum Subframe with Galvanized Steel Supports provide Corrosion Resistant StrengthStoughton Grain Trailers are available with Black or White aluminum side walls. All grain trailers come standard with Shurco tarps to protect the load. Other options are also available. Please see our Video for more details on our dependable hopper trailers.
